Ceramic Linings for Grinding Mills

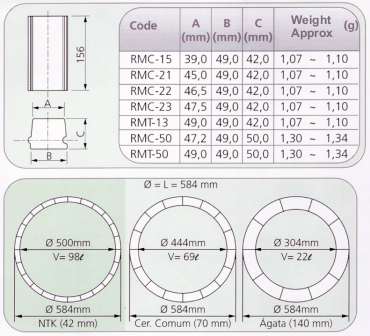

The high abrasion resistance and mechanical resistance of NTK Ceramics allows the construction of mills 40% to 85% thinner than with other materials. This maximizes the volume of the mill and increases its load capacity (see below).

Nominal Dimensions


Physical-Chemical Characteristics

Al203 (%)
Apparent Density (g/cm³)
Water Absorption (%)
(MPA)
Rockwell hardness 15 N
Impact Resistance
Abrasion Resistance
87
> 3,45
< 0,1
250
90
Good
Very Good


Data obtained in sample bodies of test and do not constitute a guarantee.
